The illustration above depicts a wide two-way street that connects central business districts, downtown areas, institutional centers, and residential neighborhoods. Long, continuous corridors become increasingly congested as they approach central areas, progressively collecting regional commuters.

This street supports local and through traffic along with major bus routes. Private motor vehicles, taxis, and informal collective transport all demand curbside space, resulting in frequent double-parking, blocked transit stops, and unsafe cycling conditions, as well as delayed transit service.

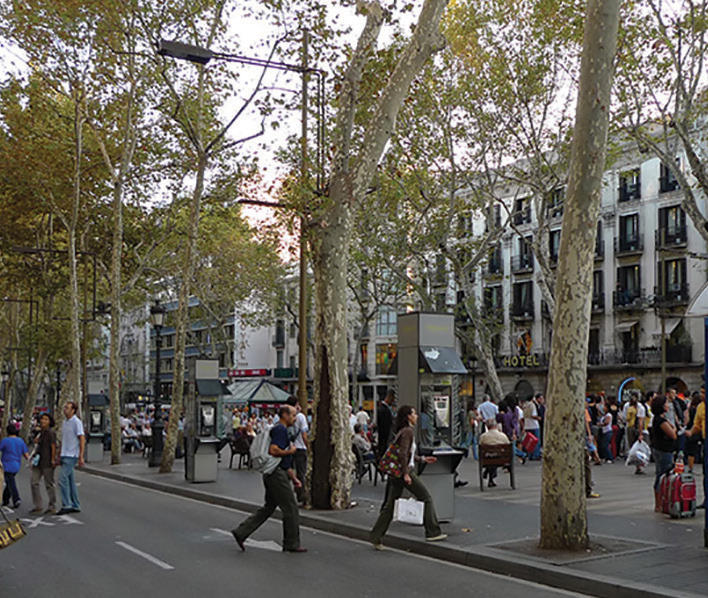

 Redesign the street to provide a widened central median that serves as a public space with trees, benches, lighting, street vendors, cycle share, water fountains, and public amenities.

Remove private vehicle access to prioritize pedestrians, transit, and cyclists. Frequent, reliable transit service can serve far more users than private vehicles, with significantly improved safety and comfort for pedestrians and cyclists.

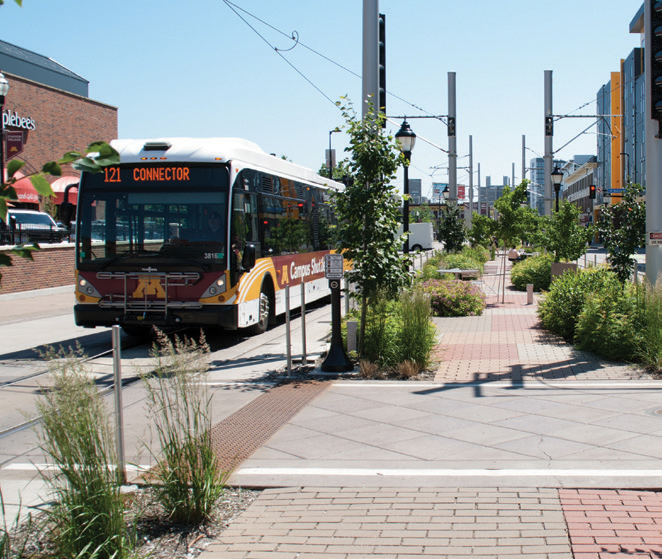

 Dedicate lanes for transit with low speeds, shared with cyclists and taxis. Provide transit shelters on the widened central median or the sidewalk furniture zone depending on transit vehicle door alignment. Maintain the pedestrian clear path when locating transit shelters and stops.
